Overview

Description

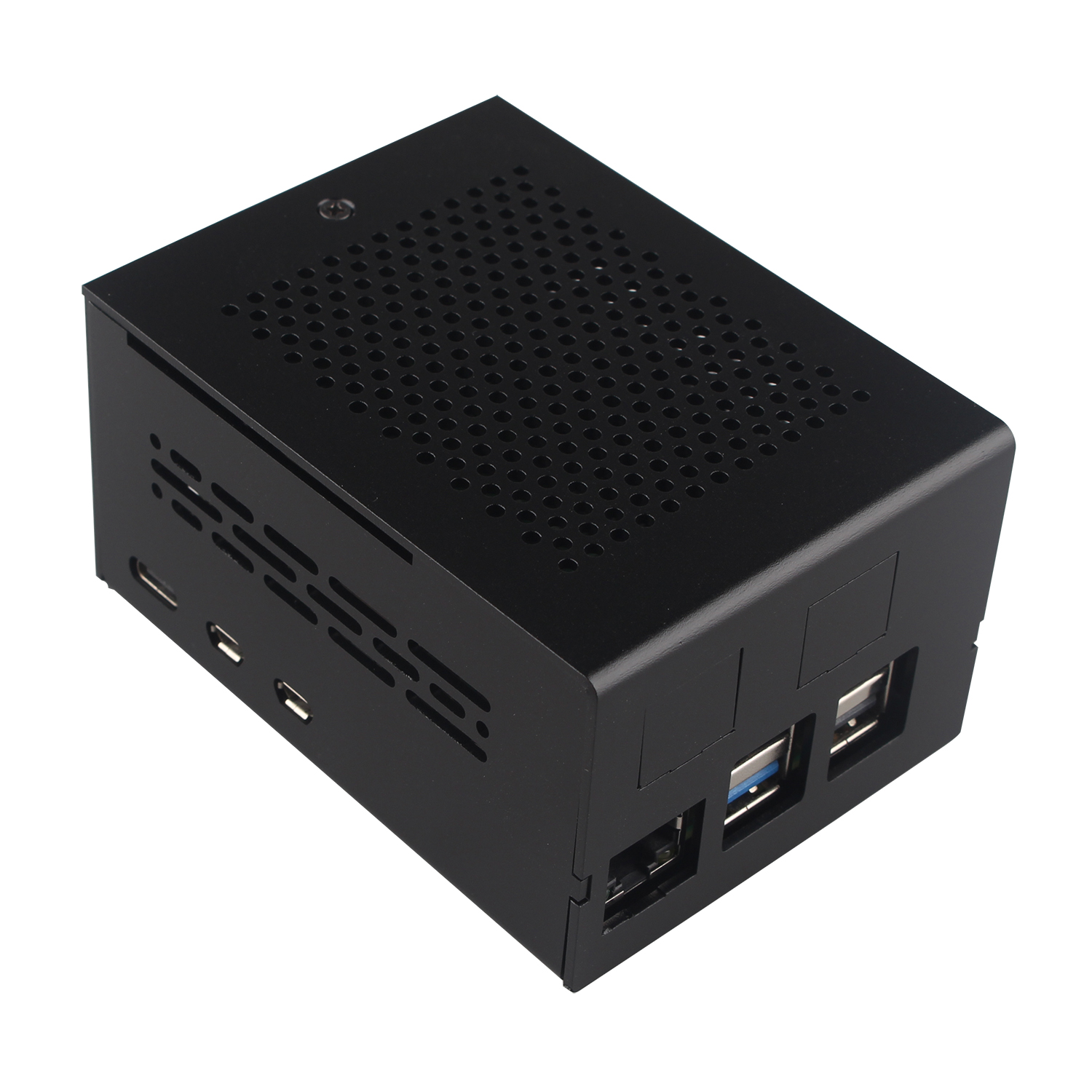

The enclosure is compatible with the latest Raspberry Pi 5 2GB/4GB/8GB/16GB board, specifically designed for HAT expansion boards with 2.5G Ethernet Port (The two modules for 2.5G Ethernet ports are easily detachable). It also supports installation of various PCIe to M.2 NVMe SSD expansion boards, PoE HAT shields, and WiFi7 adapter boards.



Features

• Made of lightweight and durable aluminum material, it can offer excellent protection and heat dissipation, protect the Raspberry Pi 5 board from damage, dust and scratches.

• Support installation of official Raspberry Pi 5 active cooler and other third-party cooling fans for heatsink. For active cooler, please refer to ZP536(ASIN: B0DSZYHNF5).

• This aluminum case can access all ports of Pi 5, including USB-C power jack, micro HDMI ports, USB ports, Ethernet jack, micro SD card slot, power button, 4-lane MIPI DSI/CSI connectors.

• Comes with a rich set of screws kit for easy installation and fixation of the Raspberry Pi 5 and expansion boards, ensuring a sturdy and reliable assembly. A screwdriver is also provided.

• Suitable for top PCIe peripheral boards installation, not fit base shields installation.



Compatibility

• Supports PCIe to M.2 NVMe SSD expansion boards: ZP511(ASIN: B0CZ6NWXYL); ZP512(ASIN: B0CZ6VZH2C); ZP513(ASIN: B0CYWVSB14); ZP515(ASIN: B0CYWFGKDB); ZP516(ASIN: B0D1GDXMHD); ZP517A(ASIN: B0D1QYDJJJ); ZP518(ASIN: B0F2974W33); ZP519(ASIN: B0F299Y72Y).

• Supports PoE HAT expansion boards: ZP580(ASIN: B0D7VTH1HX); ZP581(ASIN: B0DNJDMW7V); ZP582(ASIN: B0DNJHRWBB); ZP583(ASIN: B0DYDR89GC).

• Supports WiFi7 adapter boards: ZP590A(ASIN: B0D78TWCB9); ZP590B(ASIN: B0D78V96R4).

• Supports PCIe to 2.5G Ethernet Port HAT expansion boards: ZP593(ASIN: B0DQ8C1PBD); ZP595(ASIN: B0DQ8BLD6L).

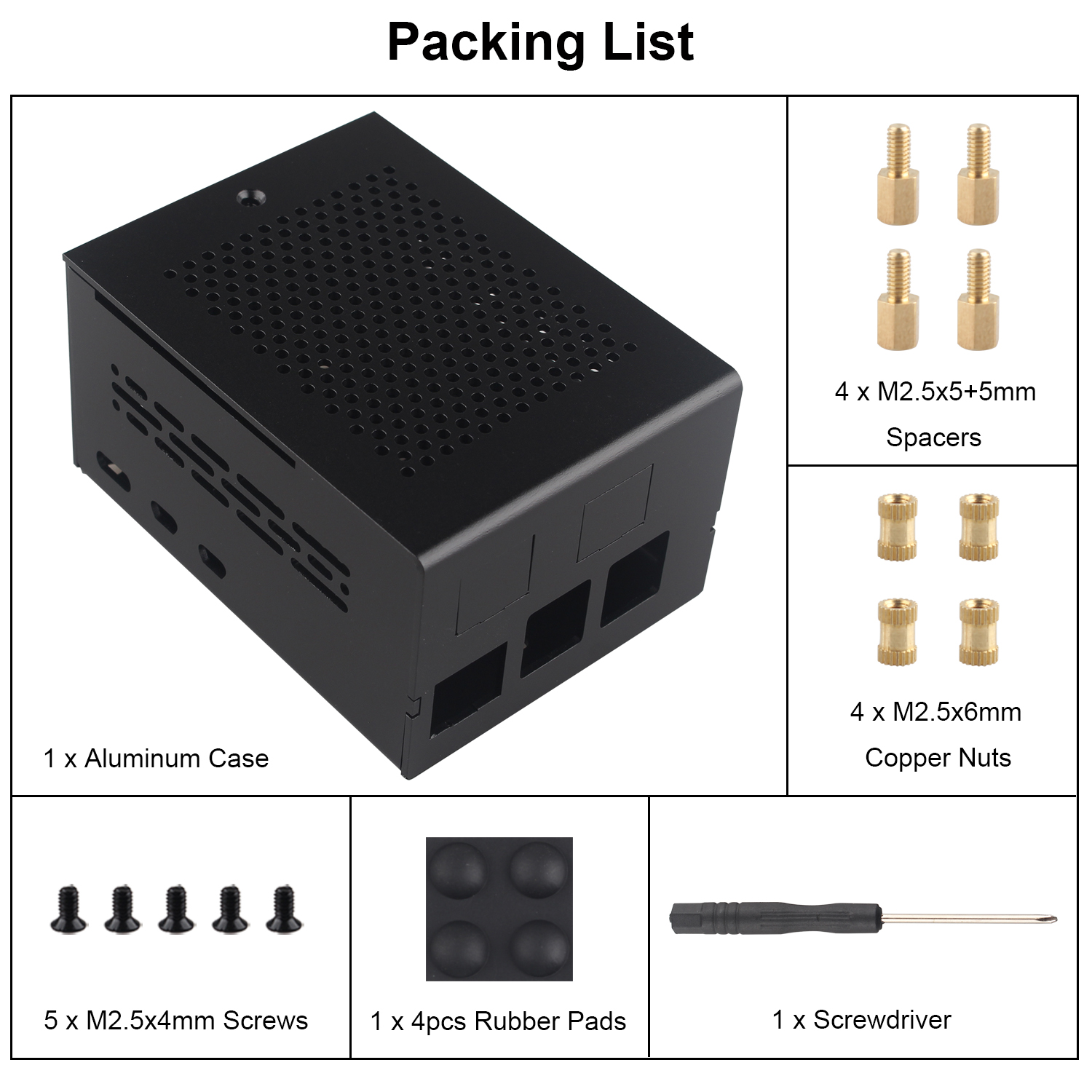

Packing List
